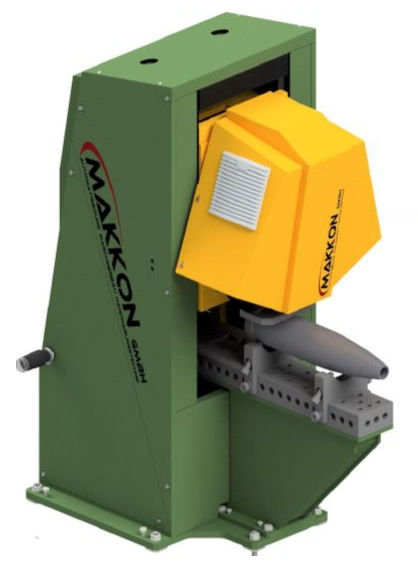

BHT-M Tube or Ammunition Brinell hardness testing machine

  • Fully automatic milling and hardness testing

  • Test height 300 mm

  • Test method HBW10/3000

  • Image evaluation with AI technology

  • Siemens S7 control system

  • Option: Automatic chip extraction

  • Option: Specially designed loading table

  • ​CE safety in accordance with the country of destination


​

Test procedure:

  • The workpiece is placed on the loading area by the user or customers loading system.

  • The milling and testing cycle is then started by the operator.

  • The workpiece is clamped and a small milling operation is performed.

  • The milling chips are removed via an optional extraction device.

  • The hardness test head is swung in and the actual test is started according to HBW10/3000.

  • The result is displayed on the monitor with an image.


Haertepruefmodul

​

Key data:

  • Simplified version for tubes and bombshells

  • Fully automatic milling and hardness testing

  • Test method HBW10/3000 alternatively HBW5/750 or HRC

  • Milling depth adjustable from 0.5 to 6 mm

  • Siemens S7-300 control system

  • Standard hardness testing unit from ATM Qness GmbH

  • Image evaluation with QIA technology

  • Test height 300 mm

Kopie von repkon1.JPG

BHT-M Ammunition Brinell hardness testing machine

  • Fully automatic milling and hardness testing

  • Test method HBW10/3000

  • Image evaluation with AI technology

  • Siemens S7 control system

  • Option: Automatic chip extraction

  • Rotary indexing table 2 x 180 degrees

  • Robots available or provided by customer for loading and unloading

  • CE safety in accordance with the country of destination

Kopie von rep1.jpg

​

Test procedure:

  • The workpiece is loaded into the fixture by the robot.

  • During this loading and unloading process, the second workpiece is milled and hardness tested in the machine.

  • The milling chips are removed via an optional extraction device.

  • The hardness test head is swung in and the actual test is started according to HBW10/3000.

  • The result is displayed on the monitor with an image.

Kopie von granaten.jpg

​

Key data:

  • Simplified version for tubes and bombshells

  • Fully automatic milling and hardness testing

  • Test method HBW10/3000 alternatively HBW5/750 or HRC

  • Milling depth adjustable from 0.5 to 6 mm

  • Siemens S7-300 control system

  • Standard hardness testing unit from ATM Qness GmbH

  • Image evaluation with QIA technology

  • Test height 300 mm

  • Cycle time for one workpiece approx. 40 seconds
